D250SE 20A Off Grid Charger

D250SE 20A Off Grid Charger

115.000 KWD
115.000 KWD
Tax included. Shipping calculated at checkout.
  • The CTEK D250SE regulates while driving to charge your car battery at 20 amps per hour
  • Prevents the battery from completely discharging
  • Ideal for travelers and caravan users, especially those with electrical appliances (such as a fridge) connected to the car battery
  • Supports installing a solar panel to charge the car battery when parked using solar energy
  • Can be integrated with a CTEK System Monitor and CTEK Smartpass 120 to regulate an additional 120 amps

Specifications

Features

  • 20A fully automatic temperature compensated charging for batteries from 40-300Ah while you’re on the move

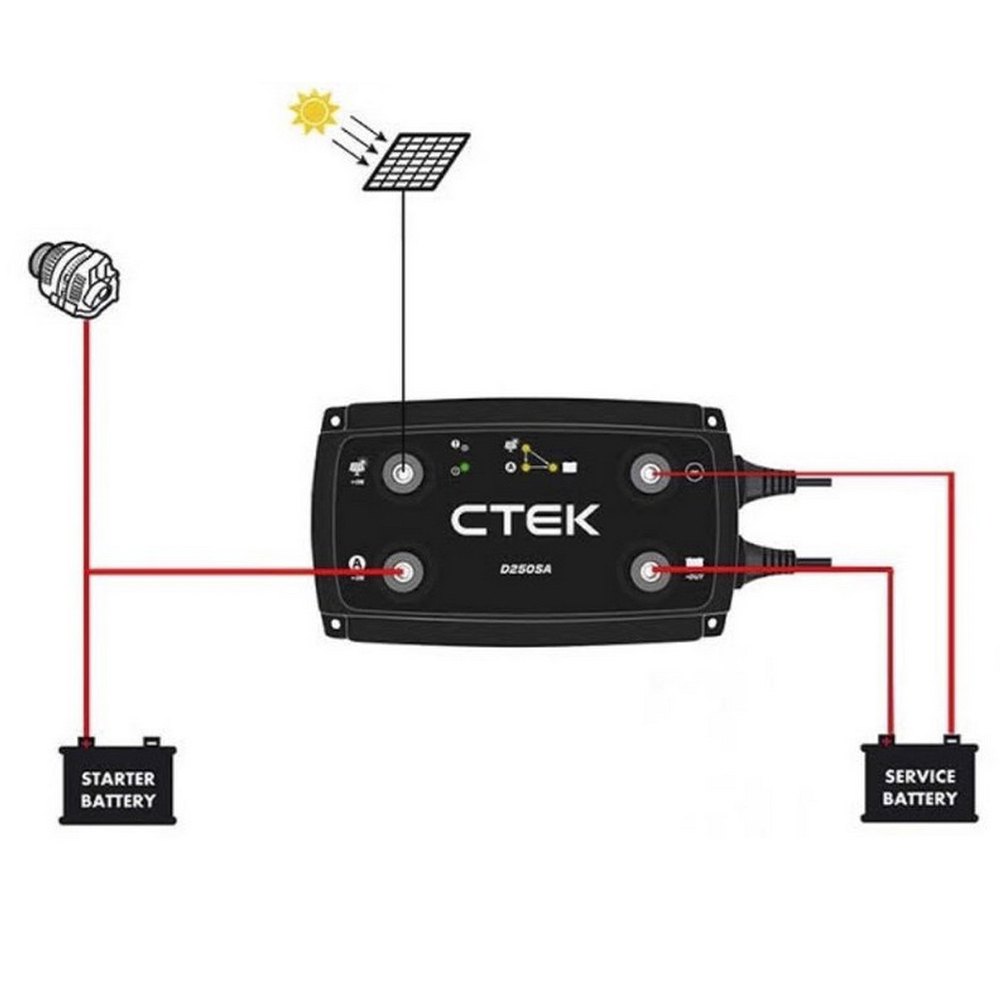

  • Dual input (solar and alternator in parallel)
  • Smart alternator compatible
  • Selectable lithium* and lead-acid mode
  • Solar panel regulator with Maximum Power Point Tracking (MPPT)
  • Battery separation replacing diodes and VSR relays
  • Selectable AGM option – 14.4V or 14.7V
  • Maximised charging for better battery life and performance
  • Temperature sensor to compensate for hot or cold conditions
  • Splash and dust proof (IP65)
  • Compatible with SMARTPASS 120 for the ultimate 140A power management solution
  • 2-year warranty

Technical Data

  • Charging category: DC charging
  • Input: 11.5–23 V, 25 A
  • Lead-Acid Battery Output: 14.4/14.7 V, 20 A
  • Lithium Battery Output: 14.2 V, 20 A
  • Battery chemistry: Lead acid; Lithium-ion
  • Battery types: 12 V:; WET; MF; Ca/Ca; AGM; EFB; GEL; LiFePO₄
  • Battery capacity: 40–300 Ah
  • Battery voltage: 12 V
  • Ambient operating temperature: -20 ˚C to +50 ˚C
  • Start voltage: 4 V
  • Degree of protection: IP65
  • Warranty: 2 Years

Included in the box

  • D250SE
