Specifications
Features
- Power supply: max 60A; selectable 0.1V increments from 12.6V to 14.8V
- Extremely low ripple
- Automatic parallel load compensation
- Fanless cooling system
- Multilingual, easy to read LCD display
- Suitable for all types of 12V batteries, including lithium iron phosphate
- Charger type: 8-step, fully automatic charging cycle
- Charging voltage: ‘NORMAL’ (14.4V); AGM (14.7V); ‘RECOND’ (15.8V)
- Battery capacity: lead-acid 10–3600Ah; lithium 15–1200Ah
- 2V start up voltage for charging
Technical Data
- Charging category: AC charging
- Input220–240 VAC, 50–60 Hz, 9.2 A
- Output: 12 V,60 A
- Power supply mode: Max 60A, selectable 0.1V increments from 12.6V to 14.8V
- Battery chemistry: Lead acid; Lithium-ion
- Charging Voltage - Lead acid: 14.4V/15.8V/13.6V
- Charging Voltage - Lithium: 13.8V/14.4V/13.3V
- Battery types: 12 V - WET; Ca/Ca; AGM; EFB; GEL; LiFePO₄
- Battery capacity: 10–3600 Ah for lead-acid battery types; 15–1200 Ah for Lithium batteries
- Battery voltage: 12V
- Ambient operating temperature: -20 ˚C to +50 ˚C
- Cooling: Natural convection
- Temperature compensation: Built in temperature sensor
- Degree of protection: IP40
- interface: LCD graphical display; Multilingual, easy to read
- USB: Type B USB 2 port for updates and service.
- Mains cable length: 2.5m (AC cable) - detachable
- Warranty: 2 years
Included in the box

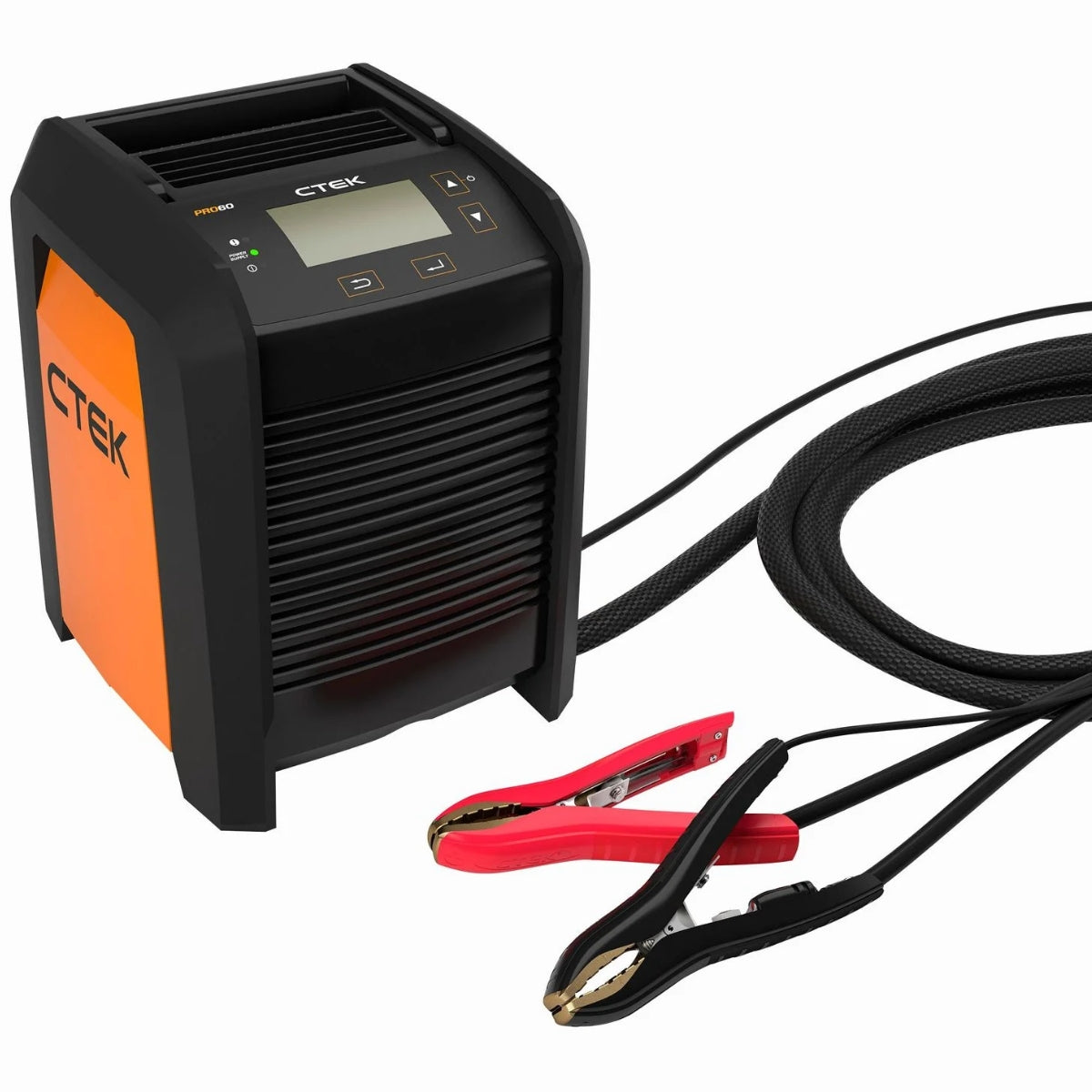

- PRO60 Charger
